Product Information

Standard Configuration:

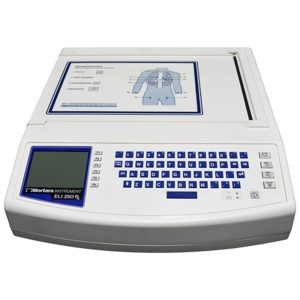

Instrument Type 12-Lead Electrocardiograph
Input Channels Simultaneous Acquisition Of Al 12 Leads
Standard Leads Acquired I, Ii, Iii, AVR, AVL, AVF, V1, V2, V3, V4, V5, V6
Waveform Display Backlit, 1/4 VGA LCD (320 X 240); 3-Lead Groups, 8 Or 12-Lead Presentation
Digital Sampling Rate 10,000 S/Sec/Channel Used For Pacemaker Spike Detection; 1000 S/Sec/Channel Used For Recording And Analysis
Paper Type Perforated Z-Fold Thermal Paper, A4 Or 8.5 X 11″ Wide, 250 Sheets
Thermal Printer Computer-Controlled Dot Array; 8 Dots/Mm
Thermal Printer Speeds 5, 10, 25, Or 50 Mm/S
Gain Settings 5, 10, Or 20 Mm/MV
Frequency Response 0.05 To 300 Hz
Filters High-Performance Baseline Filter; Ac Interference Filter 50/60 Hz; Low-Pass Filters 40 Hz, 150 Hz, Or 300 Hz
Ecg Storage Internal Storage Up To 60 ECGs; Optional Expanded Up To 150 ECGs
Dimensions 15.5 X 17 X 4″ (39.4 X 43.2 X 10.2 Cm)
Power Requirements Universal Ac Power Supply (100-240 VAC At 50/60 Hz) 50 VA; Internally Rechargeable Battery
