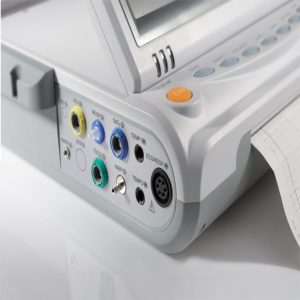

CTG MACHINE BX-6B BAXTER MEDICAL UK
◆ Beautiful shape design, flexible display viewing angle adjustment, convenient and easy to use;
◆ 12.1″ high-definition color LCD screen, display fetal heart rate curve and parameter data;
◆ Built-in high-energy lithium-ion rechargeable battery, making the machine more durable;
◆ The pop-up menu cooperates with the jog shuttle operation to make the operation easy and convenient;
◆ With 150mm wide line recording function, real-time recording of monitoring curves;
◆ It can monitor fetal heart rate, uterine contraction pressure, fetal movement and fetal activity curve;
◆ There are three display modes: fetal mode, maternal fetal mode, and mother mode.
Product Information
Standard Configuration:
- FHR, TOCO
- Fetal movement
- 110mm built-in printer
- Battery
- Printer paper x 01
- CTG belt x 02
- Power Cord x 01
Optional:
- ECG
- Twin FHR
- NIBP
- SpO2
- 2-Temperature (Rectal & Surface)
- 2-Resp (Impedance & Nasal Tube)
- Wall mount
- Moving Cart
- Fetal Wake-Up Alarm
- Wireless terminal
- Wireless network
| FHR | |
| Ultrasound Frequency | 1mhz + 1khz |
| Ultrasound Input Intensity | < 2mW/cm² |
| Range | 30 – 240bpm |
| Accuracy | +1Bpm |
| Alarm Limit & Tolerance | +5% |
| Min | (30 – 240)Bpm |
| Tolerance | +5% |
| TOCO | |
| Measurement Range | 0 – 100% |
| Resolution | 1% |
| Pressure Tolerance | +6.7% |
| Zero-Mode | Manual |
| Fetal Movement | |
| Count Mode | Manual, automatic and automatic fetal movement waveform. |
| Wide-Line Printer | |
| Printing Paper | Foldable Z-type thermal paper |
| Width | 110mm |
| Sweep Speed | 1cm/min, 2cm/min, 3cm/min, 25mm/min
Quick recall printing |
| Power Requirement | 100-240Vac, 50-60Hz |
| ECG | |
| Input | 3/5 wire ECG cable |
| Lead Section | I, II, III, aVL, aVF, V |
| Gain Selection | x1/4, x1/2, x1, x2, x4 and automatic |
| Sweep Speed | 3.125mm/s, 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s |
| Heart Rate Range | 15 – 300Bpm |
| Calibration | +1mv |
| Accuracy | +1% |
| NIBP | |
| Philosophy | Oscillometric method |
| Measurement Type | Adult, pediatric & neonate |
| Measurement Parameter | Systolic, diastolic, mean |
| Measurement Method | Manual automatic, continuous measurement |
| Unit | mmHg/kPa selection |
| Accuracy | +3mmHg or +2% |
| SPO2 | |
| Display Type | Waveform, data |
| Measurement Range | 0 – 100% |
| Accuracy | 1% |
| Pulse And Range | 30 – 250Bpm |
| Accuracy | +1Bpm |
| Resolution | 1Bpm |
