Product Information

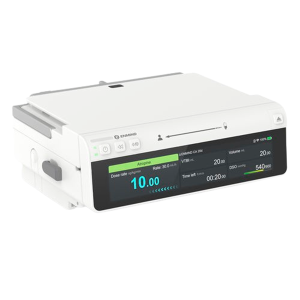

EN-V9 Smart Infusion Pump
- Electronic locking of the infusion set clamp and flow clamp. Convenient assembly and disassembly of the infusion set.
- Foldable and rotatable pipe holder compatible with stands and horizontal and vertical rails.
- Data synchronization management. Interaction with workstation and central monitoring system.
- Medication management system that can store up to 5,000 medications, sorted by color, supporting DERS.
- 7-inch color capacitive touchscreen for exceptional display and operation capabilities.
- Single step operation enabling easy connection of multiple pumps, communication via IrDA.
Standard Configurations:
| Supply range | VTBI | KVO range |
| 0.1 2300ml/h | 0.1 9999.99ml | 0 10ml/h |
| Bubble size | Accumulation of bubbles | Occlusion pressure |
| 9 levels, 10 800pL | 50 1000pL/15min | 15 levels, 50 1125mmHg |
| Battery
11.1V, 2600mAh |
Power Source
AC:100-240V, 50/60Hz DC:12-16V |
Waterproof
IP44 |
Dosing rate range (ml/h): 0.1 – 2300;
Occlusion pressure programming range (mmHg): 50 – 1125;
Number of occlusion pressure programming thresholds: 15;
